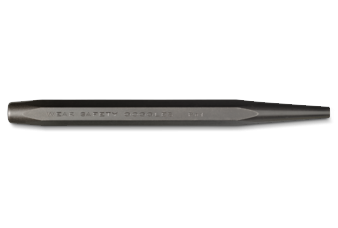

Proto 7/32" Punch Starting

SKU
STP 507/16
$0.00
Contact Us for Pricing

Proto 7/32" Starting Punch

Proto 7/32" Starting Punch

Similar to drift punches, but with wider points and heavier, shorter body. Application: to align holes in two or more pieces of metal through which a bolt or screw is to be inserted. Application: for installing and removing pins and shafts. One-piece design for strength and durability. Reverse taper to help prevent binding. Made from S2 steel and specially heat-treated for greater strength and durability. Modified parabolic striking end to help reduce mushrooming and chipping. Black oxide finish to help prevent rust corrosion; extending tool life and performance. A polished identification panel on one of the flats is marked with the tool number and size in a black inlay.

TIP WIDTH [IN] 7/32
SHANK WIDTH [IN] 7/16
STRIKING END DIAMETER 13/32
OVERALL LENGTH [IN] 6
WEIGHT [LBS] 0.24
SPECIFICATION ASME ASME B107.48
More Information
NSN 5120-01-652-1119
GSA Item Yes
FedMall Item No
UPC N/A
