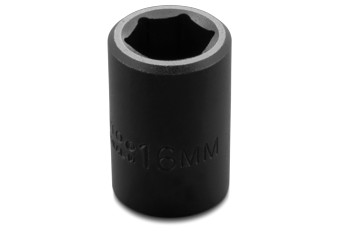

Proto® 1/2" Drive Impact Socket 16mm - 6 Point

SKU
STP 7416M
$0.00
Contact Us for Pricing

Proto® 1/2" Drive Impact Socket 16mm - 6 Point

Proto® 1/2" Drive Impact Socket 16mm - 6 Point

Proto 6 Point Impact Sockets are ideal for use on stubborn or damaged fasteners and also on fasteners made from soft materials. The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners. The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage. The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

SIZE [MM] 16
NUT END OUTSIDE DIAMETER [IN] 1
DRIVE END OUTSIDE DIAMETER [IN] 1
NUT DEPTH [IN] 17/32
BOLT CLEARANCE DEPTH [IN] 27/32
OVERALL LENGTH [IN] 1-1/2
WEIGHT [LBS] 0.20
DRIVE SIZE [IN] 1/2
POINT SIZE 6
FINISH Black Oxide
LENGTH TYPE Standard
UNIT OF MEASURE Metric
SPECIFICATION ASME ASME B107.110-2012
More Information
NSN 5130-01-649-0145
GSA Item Yes
FedMall Item No
UPC N/A
