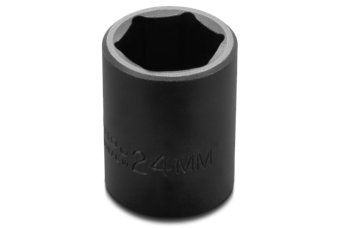

1/2" Drive Impact Socket 24MM - 6 Point

SKU

STP 7424M

$0.00

Proto® 6 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

SIZE [MM]	24
NUT END OUTSIDE DIAMETER [IN]	1-23/64
DRIVE END OUTSIDE DIAMETER [IN]	1-23/64
NUT DEPTH [IN]	43/64
BOLT CLEARANCE DEPTH [IN]	31/32
OVERALL LENGTH [IN]	1-5/8
WEIGHT [LBS]	0.43
DRIVE SIZE [IN]	1/2
POINT SIZE	6
FINISH	Black Oxide
LENGTH TYPE	Standard
UNIT OF MEASURE	Metric
SPECIFICATION ASME	ASME B107.110-2012
