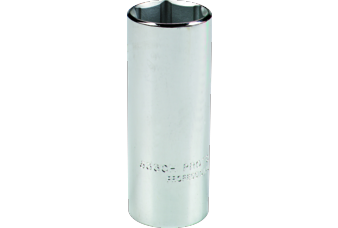

Proto® 1/2" Drive Deep Socket 3/4" - 6 Point

SKU
STP 5324H
$0.00
Contact Us for Pricing

Proto® 1/2" Drive Deep Socket 3/4" - 6 Point

Proto® 1/2" Drive Deep Socket 3/4" - 6 Point

Proto® 6 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials. The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners. The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage. The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

SIZE [IN] 3/4
NUT END OUTSIDE DIAMETER [IN] 1-3/64
DRIVE END OUTSIDE DIAMETER [IN] 1-3/64
NUT DEPTH [IN] 1-3/16
BOLT CLEARANCE DEPTH [IN] 2-39/64
OVERALL LENGTH [IN] 3-1/4
WEIGHT [LBS] 0.40
DRIVE SIZE [IN] 1/2
POINT SIZE 6
FINISH Full Polish
LENGTH TYPE Deep
UNIT OF MEASURE Fractional
SPECIFICATION ASME ASME B107.110-2012
More Information
NSN 5120-01-648-7498
GSA Item Yes
FedMall Item No
UPC N/A
