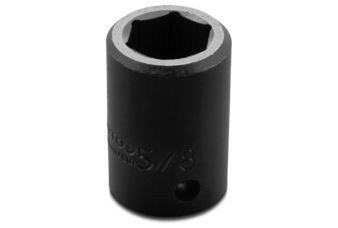

1/2" Drive Impact Socket 5/8" - 6 Point

SKU

STP 7420H

$0.00

Proto® 6 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

SIZE [IN]	5/8
NUT END OUTSIDE DIAMETER [IN]	1
DRIVE END OUTSIDE DIAMETER [IN]	1
NUT DEPTH [IN]	1/2
BOLT CLEARANCE DEPTH [IN]	27/32
OVERALL LENGTH [IN]	1-1/2
WEIGHT [LBS]	0.20
DRIVE SIZE [IN]	1/2
POINT SIZE	6
FINISH	Black Oxide
LENGTH TYPE	Standard
UNIT OF MEASURE	Fractional
SPECIFICATION ASME	ASME B107.110-2012
