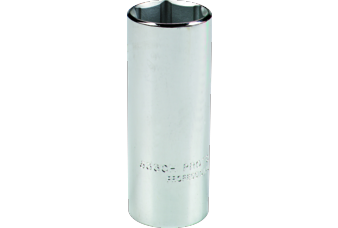

Proto® 1/2" Drive Deep Socket 7/16" - 6 Point

SKU
STP 5314H
$0.00
Contact Us for Pricing

Proto® 1/2" Drive Deep Socket 7/16" - 6 Point

Proto® 1/2" Drive Deep Socket 7/16" - 6 Point

Proto 6 Point Sockets are ideal for use on stubborn or damaged fasteners and also on fasteners made from soft materials. The Torque Plus design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners. The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage. The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

SIZE [IN] 7/16
NUT END OUTSIDE DIAMETER [IN] 9/16
DRIVE END OUTSIDE DIAMETER [IN] 7/8
NUT DEPTH [IN] 23/64
BOLT CLEARANCE DEPTH [IN] 2-39/64
OVERALL LENGTH [IN] 3-1/4
WEIGHT [LBS] 0.30
DRIVE SIZE [IN] 1/2
POINT SIZE 6
FINISH Full Polish
LENGTH TYPE Deep
UNIT OF MEASUREFractional
SPECIFICATION ASME ASME B107.110-20
More Information
NSN 5120-01-648-5659
GSA Item Yes
FedMall Item No
UPC N/A
