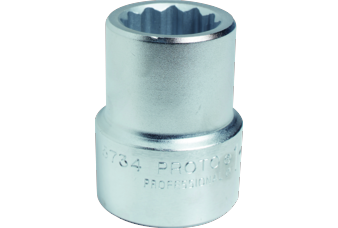

Proto® 1" Drive Socket 3" - 12 Point
SKU
STP 5796
$0.00
Proto® 1" Drive Socket 3" - 12 Point
Proto® 1" Drive Socket 3" - 12 Point
Proto 12 Point Sockets are ideal for use on stubborn or damaged fasteners and also on fasteners made from soft materials. The TorquePlus design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners. The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage. The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
| SIZE [IN] | 3 |
|---|---|
| NUT END OUTSIDE DIAMETER [IN] | 4-9/64 |
| DRIVE END OUTSIDE DIAMETER [IN] | 3-5/32 |
| NUT DEPTH [IN] | 1-53/64 |
| BOLT CLEARANCE DEPTH [IN] | 3-1/32 |
| OVERALL LENGTH [IN] | 4-11/16 |
| WEIGHT [LBS] | 5.61 |
| DRIVE SIZE [IN] | 1 |
| POINT SIZE | 12 |
| FINISH | Satin |
| LENGTH TYPE | Standard |
| UNIT OF MEASURE | Fractional |
| SPECIFICATION ASME | ASME B107.110-2012 |
| SPECIFICATION AS | AS954E S3.8.1 |
| NSN | 5120-01-648-9768 |
|---|---|
| GSA Item | Yes |
| FedMall Item | No |
| UPC | N/A |
