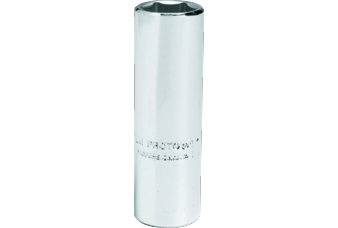

Proto® 1/4" Drive Deep Socket 9mm - 6 Point
SKU
STP 4709LM
$0.00
Proto® 1/4" Drive Deep Socket 9mm - 6 Point
Proto® 1/4" Drive Deep Socket 9mm - 6 Point
Proto 6 point sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners Made from soft materials. The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners. The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage. The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
| SIZE [MM] | 9 |
|---|---|
| NUT END OUTSIDE DIAMETER [IN] | 1/2 |
| DRIVE END OUTSIDE DIAMETER [IN] | 1/2 |
| NUT DEPTH [IN] | 39/64 |
| BOLT CLEARANCE DEPTH [IN] | 1-5/32 |
| OVERALL LENGTH [IN] | 1-63/64 |
| WEIGHT [LBS] | 0.06 |
| DRIVE SIZE [IN] | 1/4 |
| POINT SIZE | 6 |
| FINISH | Full Polish |
| LENGTH TYPE | Deep |
| UNIT OF MEASURE | Metric |
| SPECIFICATION ASME | ASME B107.110-2012 |
| NSN | 5120-01-648-7523 |
|---|---|
| GSA Item | Yes |
| FedMall Item | No |
| UPC | N/A |
