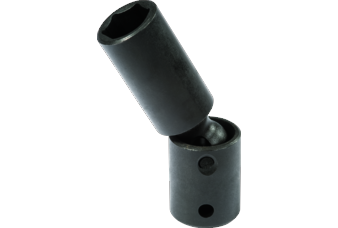

Proto® 1/2" Drive Universal Impact Socket 19mm - 6 Point
Proto® 1/2" Drive Universal Impact Socket 19mm - 6 Point
Proto® 1/2" Drive Universal Impact Socket 19mm - 6 Point
Ball and spring design which allows for a 30° working angle. Smooth 360° rotation. Proto 6 Point Impact Sockets are ideal for use on stubborn or damaged fasteners and also on fasteners made from soft materials. The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners. The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage. The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
| SIZE [MM] | 19 |
|---|---|
| DRIVE END OUTSIDE DIAMETER [IN] | 1-1/4 |
| NUT DEPTH [IN] | 1/2 |
| BOLT CLEARANCE DEPTH [IN] | 3/4 |
| OVERALL LENGTH [IN] | 2-5/8 |
| WEIGHT [LBS] | 0.54 |
| DRIVE SIZE [IN] | 1/2 |
| POINT SIZE | 6 |
| FINISH | Black Oxide |
| NSN | 5130-01-648-7505 |
|---|---|
| GSA Item | Yes |
| FedMall Item | No |
| UPC | N/A |
