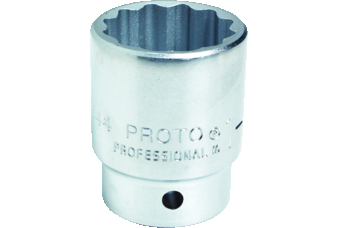

Proto® 3/4" Drive Socket 2-1/16" - 12 Point
Proto® 3/4" Drive Socket 2-1/16" - 12 Point
Proto® 3/4" Drive Socket 2-1/16" - 12 Point
Proto 12 Point Sockets are ideal for use on stubborn or damaged fasteners and also on fasteners made from soft materials. The TorquePlus design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners. The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage. The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners. Ball detent design. Made of heat-treated alloy steel. Side locking hole.
| SIZE [IN] | 2-1/16 |
|---|---|
| NUT END OUTSIDE DIAMETER [IN] | 2-49/64 |
| DRIVE END OUTSIDE DIAMETER [IN] | 2-1/32 |
| NUT DEPTH [IN] | 1-3/4 |
| BOLT CLEARANCE DEPTH [IN] | 1-3/4 |
| OVERALL LENGTH [IN] | 3-5/32 |
| WEIGHT [LBS] | 1.60 |
| DRIVE SIZE [IN] | 3/4 |
| POINT SIZE | 12 |
| FINISH | Satin |
| LENGTH TYPE | Standard |
| UNIT OF MEASURE | Fractional |
| SPECIFICATION ASME | ASME B107.110-2012 |
| NSN | 5120-01-652-1461 |
|---|---|
| GSA Item | Yes |
| FedMall Item | No |
| UPC | N/A |
