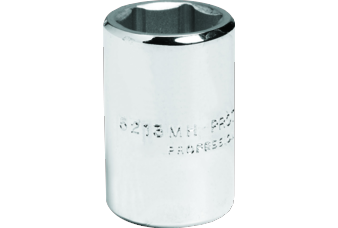

Proto® 3/8" Drive Socket 6mm - 6 Point

SKU
STP 5206MH
$0.00
Contact Us for Pricing

Proto® 3/8" Drive Socket 6mm - 6 Point

Proto® 3/8" Drive Socket 6mm - 6 Point

Proto 6 Point Sockets are ideal for use on stubborn or damaged fasteners and also on fasteners made from soft materials. The Torque Plus design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats. The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners. The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage. The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

SIZE [MM] 6
NUT END OUTSIDE DIAMETER [IN] 25/64
DRIVE END OUTSIDE DIAMETER [IN] 43/64
NUT DEPTH [IN] 1/4
BOLT CLEARANCE DEPTH [IN] 39/64
OVERALL LENGTH [IN] 1-3/32
WEIGHT [LBS] 0.04
DRIVE SIZE [IN] 3/8
POINT SIZE 6
FINISH Full Polish
LENGTH TYPE Standard
UNIT OF MEASURE Metric
SPECIFICATION ASME ASME B107.110-2012
More Information
NSN 5120-01-648-8183
GSA Item Yes
FedMall Item No
UPC N/A
