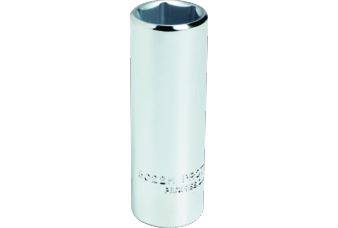

Proto® 3/8" Drive Deep Socket 7/16" - 6 Point
SKU
STP 5014H
$0.00
Proto® 3/8" Drive Deep Socket 7/16" - 6 Point
Proto® 3/8" Drive Deep Socket 7/16" - 6 Point
Proto® 6 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials. The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners. The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage. The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded or rusted fasteners.
| SIZE [IN] | 7/16 |
|---|---|
| NUT END OUTSIDE DIAMETER [IN] | 41/64 |
| DRIVE END OUTSIDE DIAMETER [IN] | 41/64 |
| NUT DEPTH [IN] | 7/16 |
| BOLT CLEARANCE DEPTH [IN] | 1-11/16 |
| OVERALL LENGTH [IN] | 2-1/8 |
| WEIGHT [LBS] | 0.12 |
| DRIVE SIZE [IN] | 3/8 |
| POINT SIZE | 6 |
| FINISH | Full Polish |
| LENGTH TYPE | Deep |
| UNIT OF MEASURE | Fractional |
| SPECIFICATION ASME | ASME B107.110-2012 |
| NSN | 5120-01-652-1044 |
|---|---|
| GSA Item | Yes |
| FedMall Item | No |
| UPC | N/A |
