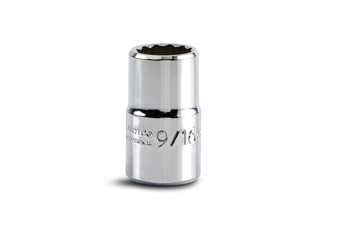

1/2" Drive Socket 9/16" -12 Point
SKU
STP 5418
$0.00
1/2" Drive Socket 9/16" -12 Point
Proto 1/2" Drive Socket 9/16" -12 Point
- Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
- The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
| SIZE [IN] | 9/16 |
|---|---|
| NUT END OUTSIDE DIAMETER [IN] | 13/16 |
| DRIVE END OUTSIDE DIAMETER [IN] | 55/64 |
| NUT DEPTH [IN] | 23/64 |
| BOLT CLEARANCE DEPTH [IN] | 51/64 |
| OVERALL LENGTH [IN] | 1-1/2 |
| WEIGHT [LBS] | 0.13 |
| DRIVE SIZE [IN] | 1/2 |
| POINT SIZE | 12 |
| FINISH | Full Polish |
| LENGTH TYPE | Standard |
| UNIT OF MEASURE | Fractional |
| SPECIFICATION ASME | ASME B107.110-2012 |
| SPECIFICATION AS | AS954E S3.8.1 |
| NSN | 5120-00-189-7932 |
|---|---|
| GSA Item | Yes |
| FedMall Item | No |
| UPC | N/A |
