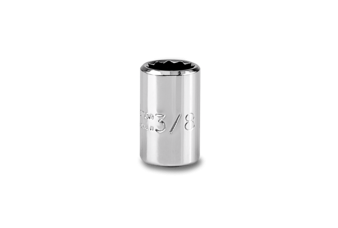

Proto 1/4" Drive Socket 3/8" -12 Point

SKU
STP 4712T
$0.00
Contact Us for Pricing

1/4" Drive Socket 3/8" -12 Point

Proto 1/4" Drive Socket 3/8" -12 Point

  • Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
  • The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
  • The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
  • The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
SIZE [IN] 3/8
NUT END OUTSIDE DIAMETER [IN] 35/64
DRIVE END OUTSIDE DIAMETER [IN] 35/64
NUT DEPTH [IN] 23/64
BOLT CLEARANCE DEPTH [IN] 17/32
OVERALL LENGTH [IN] 7/8
WEIGHT [LBS] 0.04
DRIVE SIZE [IN] 1/4
POINT SIZE 12
FINISH Full Polish
LENGTH TYPE Standard
UNIT OF MEASURE Fractional
SPECIFICATION ASME ASME B107.110-2012
SPECIFICATION AS AS954E S3.8.1
More Information
NSN 5120-01-335-1070
GSA Item Yes
FedMall Item No
UPC N/A
