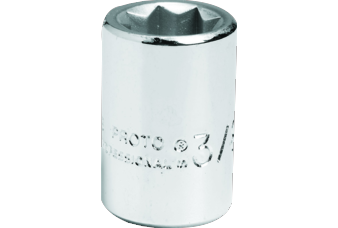

Proto® 1/4" Drive Socket 5/16" - 8 Point

SKU
STP 4710S
$0.00
Contact Us for Pricing

Proto® 1/4" Drive Socket 5/16" - 8 Point

Proto® 1/4" Drive Socket 5/16" - 8 Point

Proto® 8 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials. The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners. The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage. The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded or rusted fasteners.

Size [in]5/16
Nut End Outside Diameter [in]9/16
Drive end Outside Diameter [in]9/16
Nut Depth [in]1/4
Bolt Clearance Depth [in]17/32
Overall Length [in]7/8
Weight [Lbs]0.05
Drive Size [in]1/4
Point Size8
FinishFull Polish
Length TypeStandard
Unit of MeasureFractional
Specification ASMEASME B107.110-2012
More Information
NSN 5120-01-430-4485
GSA Item Yes
FedMall Item No
