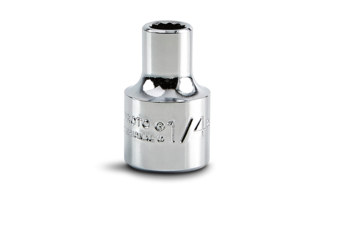

3/8" Drive Socket 1/4" - 12 Point

SKU
STP 5208
$0.00
Contact Us for Pricing

3/8" Drive Socket 1/4" - 12 Point

Proto 3/8" Drive Socket 1/4" - 12 Point

  • Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
  • The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
  • The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
  • The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
SIZE [IN] 1/4
NUT END OUTSIDE DIAMETER [IN] 25/64
DRIVE END OUTSIDE DIAMETER [IN] 43/64
NUT DEPTH [IN] 23/64
BOLT CLEARANCE DEPTH [IN] 21/32
OVERALL LENGTH [IN] 1-3/32
WEIGHT [LBS] 0.05
DRIVE SIZE [IN] 3/8
POINT SIZE 12
FINISH Full Polish
UNIT OF MEASURE Fractional
SPECIFICATION ASME ASME B107.110-2012
SPECIFICATION AS AS954E S3.8.1
More Information
NSN 5120-01-399-9528
GSA Item Yes
FedMall Item No
UPC N/A
