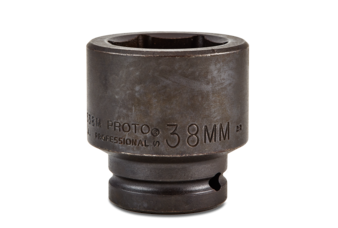

3/4" Drive Impact Socket 38MM - 6 Point

SKU

STP 07538M

$0.00

Proto® 6 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
Stamped size for easy reference.
Side locking hole.

SIZE [MM]	38
NUT END OUTSIDE DIAMETER [IN]	2-3/8
DRIVE END OUTSIDE DIAMETER [IN]	1-3/4
NUT DEPTH [IN]	1
BOLT CLEARANCE DEPTH [IN]	1-21/64
OVERALL LENGTH [IN]	2-3/8
WEIGHT [LBS]	1.56
CRUSH RETAINING RING	JRR07526 O-RING
J07500R RETAINING PIN	J07500P DRIVE SIZE [IN]
3/4 POINT SIZE	6 FINISH
Black Oxide LENGTH TYPE	Standard UNIT OF MEASURE

High QUALITY
