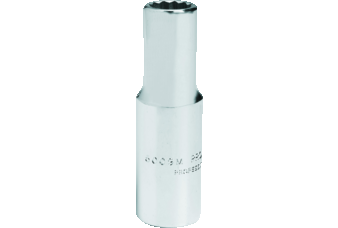

Proto 3/8" Drive Deep Socket 15MM - 12 Point
SKU
STP 5015M
$0.00
Proto 3/8" Drive Deep Socket 15MM - 12 Point
Proto 3/8" Drive Deep Socket 15MM - 12 Point
Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials. The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners. The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage. The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
| SIZE [MM] | 15 |
|---|---|
| NUT END OUTSIDE DIAMETER [IN] | 55/64 |
| DRIVE END OUTSIDE DIAMETER [IN] | 55/64 |
| NUT DEPTH [IN] | 21/32 |
| BOLT CLEARANCE DEPTH [IN] | 2-7/64 |
| OVERALL LENGTH [IN] | 2-3/4 |
| WEIGHT [LBS] | 0.15 |
| DRIVE SIZE [IN] | 3/8 |
| POINT SIZE | 12 |
| FINISH | Full Polish |
| LENGTH TYPE | Deep |
| UNIT OF MEASURE | Metric |
| SPECIFICATION ASME | ASME B107.110-2012 |
| SPECIFICATION AS | AS954E S3.8.1 |
| NSN | 5120-01-399-9606 |
|---|---|
| GSA Item | Yes |
| FedMall Item | No |
| UPC | N/A |
