3/4" Drive Deep Impact Socket 1-1/2" - 6 Point
SKU
STP 07524L
$0.00

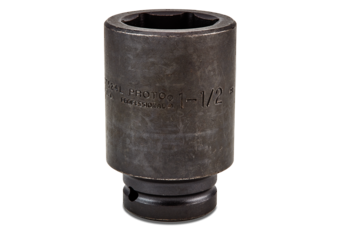

3/4" Drive Deep Impact Socket 1-1/2" - 6 Point
Proto ¾” Drive Deep Impact Socket 1-1/2” – 6 Point
- Proto® 6 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
- The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
- Stamped size for easy reference.
- Side locking hole.
| SIZE [IN] | 1-1/2 |
|---|---|
| NUT END OUTSIDE DIAMETER [IN] | 2-3/8 |
| DRIVE END OUTSIDE DIAMETER [IN] | 1-3/4 |
| NUT DEPTH [IN] | 1-1/16 |
| BOLT CLEARANCE DEPTH [IN] | 2-7/16 |
| OVERALL LENGTH [IN] | 3-1/2 |
| WEIGHT [LBS] | 2.25 |
| CRUSH RETAINING RING | JRR07526 |
| O-RING | J07500R |
| RETAINING PIN | J07500P |
| DRIVE SIZE [IN] | 3/4 |
| POINT SIZE | 6 |
| FINISH | Black Oxide |
| LENGTH TYPE | Deep |
| UNIT OF MEASURE | Fractional |
| NSN | 5120-01-224-4876 |
|---|---|
| GSA Item | Yes |
| FedMall Item | No |
| UPC | N/A |
