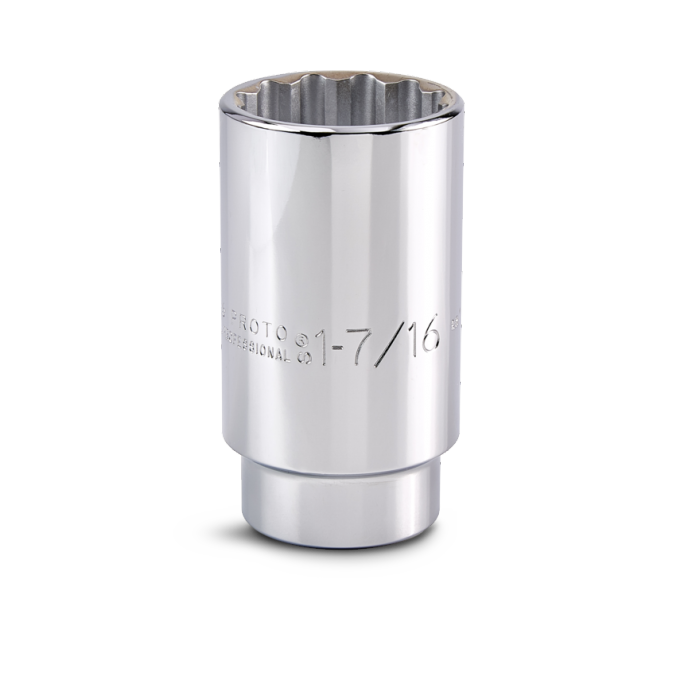

Proto® 1/2" Drive Deep Socket 1-7/16" - 12 Point

SKU
STP 5346
$0.00
Contact Us for Pricing

Proto® 1/2" Drive Deep Socket 1-7/16" - 12 Point

Proto® 1/2" Drive Deep Socket 1-7/16" - 12 Point

  • Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
  • The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
  • The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
  • The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
Size [in] 1-7/16
Nut End Outside Diameter [in] 2-1/16
Drive End Outside Diameter [in] 1-5/8
Nut Depth [in] 61/64
Bolt Clearance Depth [in] 2-1/4
Overall Length [in] 3-1/2
Weight [lbs] 1.27
Drive Size [in] 1/2
Point Size 12
Finish Full Polish
Length Type Deep
Unit of Measure Fractional
Specification ASME ASME B107.110-2012
Specification AS AS954E S3.8.1
More Information
NSN 5120-01-428-4711
GSA Item Yes
FedMall Item No
