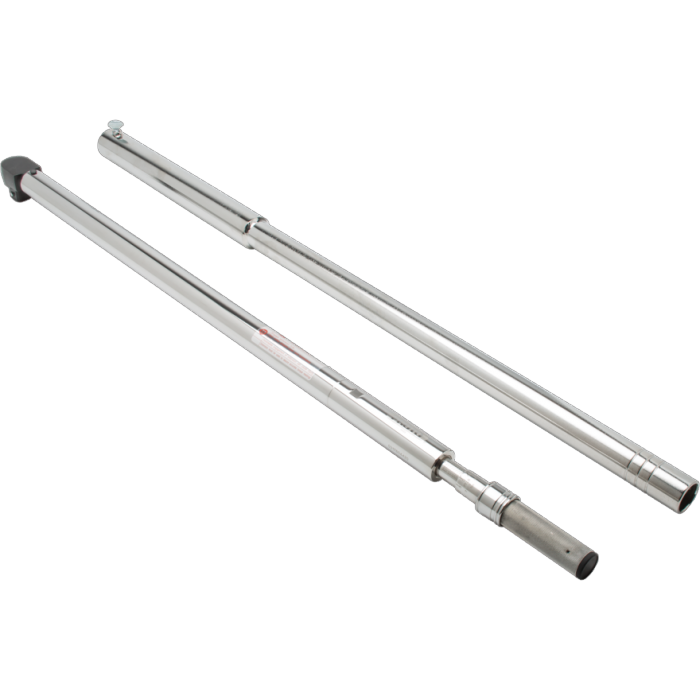

1" Drive Fixed Head Micrometer Torque Wrench 200-1000 ft-lbs
SKU
STP 6023
$0.00
1" Drive Fixed Head Micrometer Torque Wrench 200-1000 ft-lbs
1" Drive Fixed Head Micrometer Torque Wrench 200-1000 ft-lbs
Includes an extension handle. Torque wrench is 40" long. Weight and over all length are for torque wrench with the extension handle. Packaged in a metal box for easy storage. Calibrated ± 4% of torque reading clockwise and ±6% counter clockwise at 20% to 100% of full scale. Certified wrenches to ±2% one direction are available upon request.
| Increments [ft-lbs] | 5 |
|---|---|
| Torquerange [ft-lbs] | 200-1000 |
| Style | Micrometer |
| Finish | Full Polish |
| Specification ASME | ASME B107.14M |
| Specification TO | TO33K6-4-2193-1 |
| Specification ISO | ISO 6789 |
| Specification_JIS | JIS B4650 |
| Drive Size [in] | 1 |
| Head Depth [in] | 2-1/4 |
| Head Width 1 [in] | 1-7/8 |
| Overall Length [in] | 69 |
| NSN | 5120-01-651-0754 |
|---|---|
| GSA Item | Yes |
| FedMall Item | No |
